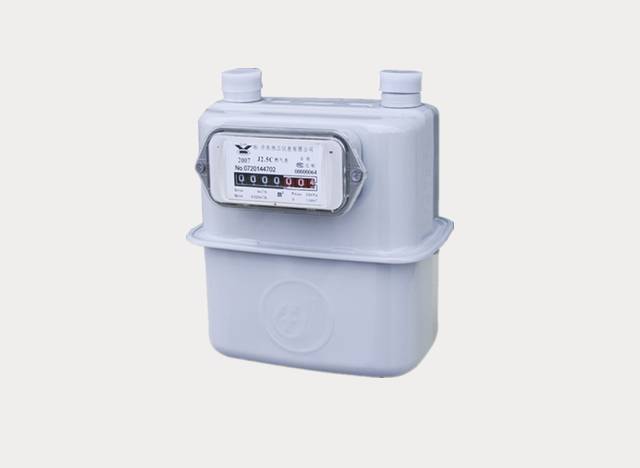

Diaphragm Gas Meter
Description
The steel-cased diaphragm gas meter is designed and manufactured in accordance with EU standards, which have passed EN1359 of NMI laboratory, OIML R137 product standard and MID factory certification; the key components such as membrane and valve system are from Europe. It is characterized by small starting flowrate, wide range, high working pressure and long service life.
Key Strengths
- Low power consumption design
- Anti-reverse ventilation and counting function
- Stable valve control
- High measurement accuracy and sensitivity.
- Stable product performance with more than 20 years market application
- Excellent card compatibility and system integration
- Use special material rubber diaphragm with good durability performance
- Adopt automatic gluing process with good sealing performance
- Adopt surface swimming paint treatment technology with strong anti-corrosion ability and long service life.
- The slide valve movement is rotary moving type, the friction between the slide valve and the slide valve seat is more regular and the wear is even.
- Reserved pulse output interface to provide optional remote set-up
- It can be retrofitted with anti-reversal venting device according to customer requirements
Specifications
| Item |
J1.6C |
J2.5C |
J4C |
||
| Qmax (m3/h) | 2.5 | 4 | 6 | ||
| Qmin (m3/h) | 0.016 | 0.025 | 0.04 | ||
|
Max Working pressure |
0.5 bar |
||||
|
Working environment temperature |
-20～+50℃ |
||||
|
Cyclic volume |
1.2 dm3 |
||||
|
Total pressure absorption |
≤160 |
||||
|
Endurance |
2000 (up to 3000) h |
||||
|
Maximum permissible error |
qmin≤q<qt |
±3 % |
|||
|
qt≤q≤qmax |
±1.5（up to ±1.2）% |
||||
|
Start flow-rate |
≤3 dm3/h |
||||
|
Max recording readings |
99999.999 m3 |
||||
|
Min recording readings |
0.0002 m3 |
||||
|
Weight |
1.8 kg |
||||
|
Connection threads |
M30*2 ( By customized) |
||||
|
Centre to centre distance |
130 mm | ||||

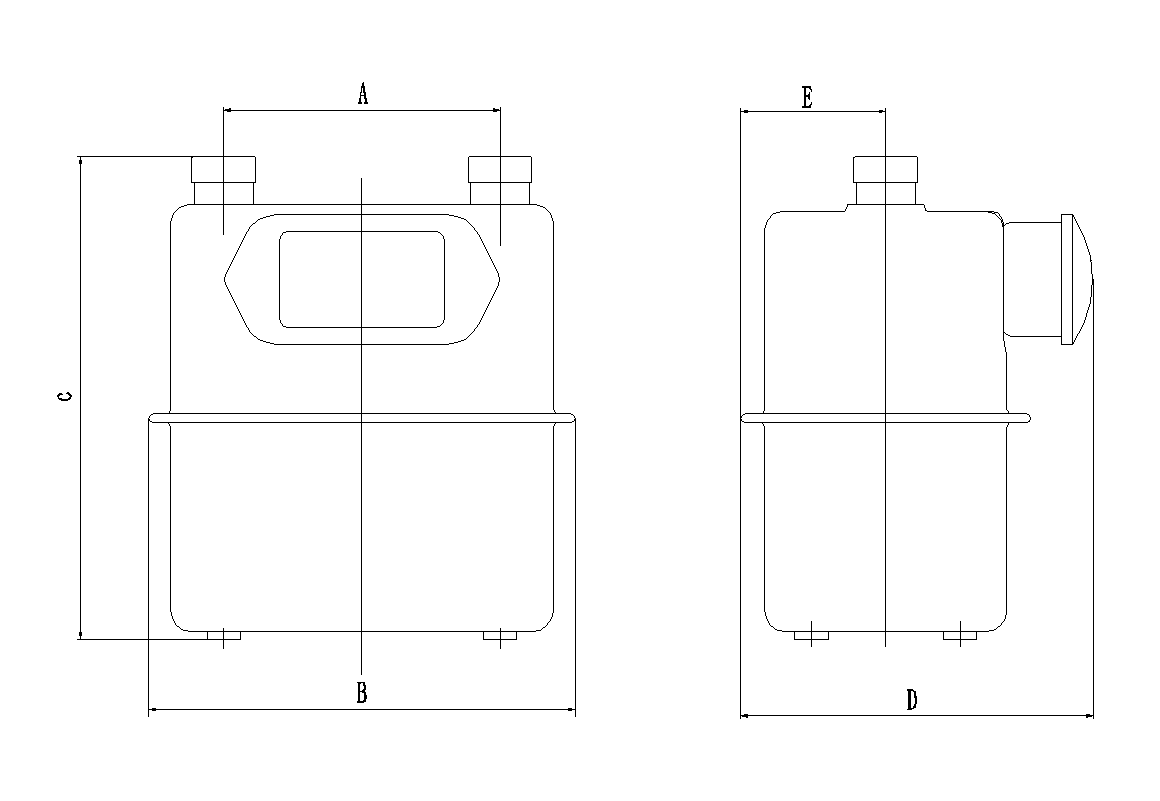

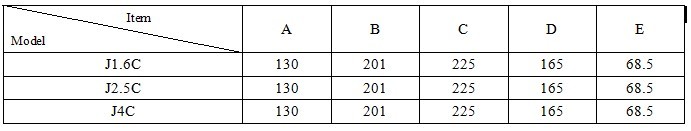

Dimensions
