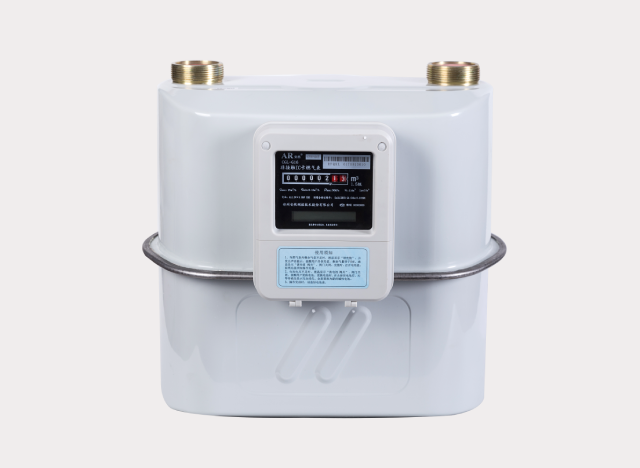

Contactless IC Card Diaphragm Gas Meter
Description
The contactless IC card gas meter with prepayment function is fitted with IC card and valve control switch and other functional modules to complete the gas consumption reading and settlement. The meter accumulates the gas consumption purchased by the users, monitors and records the gas for use process, as well as conducts terminal settlement; the prepaid gas meter also automatically manages the valve according to the remaining gas consumption and its operating status; the gas company's charging and user payment needs could be satisfied through the prepayment management system, independent payment terminal and Bluetooth card reader.
Key Strengths
- Bar-code traceability
- Amount/volume metering (optional)
- Low power consumption
- Gas prepayment
- Parameter transfer via the card
- Anti-reverse ventilation and counting function
- Real time money deduction
- IP65 protection grade
- Stable valve control
- High metering accuracy
- Stable product performance with over 20-year market application
- Super high compatibility and system integration
Safety Features
- Long-time unused gas cut off alarm
- Exceptional high flow rate cut-off alarm
- No magnetic interference
- Over-current protection
- Autonomous valve shut off due to zero gas consumption, deadlock, loss of power and under-voltage
- Gas-stealing alarm
- Anti-tamper protection
- Low gas volume alarm
Specifications
| Type | G1.6 | G2.5 | G4 |
| Qmax (m3/h) | 2.5 | 4 | 6 |
| Qmin (m3/h) | 0.016 | 0.025 | 0.04 |
| Accuracy class | 1.5 | ||
| Working voltage | 6V | ||
| Battery | AA alkaline battery (NO. 5) | ||
| Working temperature | ﹣20℃～50℃ | ||
| Maximum working pressure | 0.5bar | ||
| Average working current | ≤1mA | ||
| Quiescent current | ≤20μA | ||
| Pressure absorption | ≤160Pa | ||
| Meter fittings central distance (mm) | 130 | ||
| Degree of protection | IP65 | ||
| ATEX | ExibII BT3 Gb | ||
| Measuring resolution | 0.1m³ | ||
| Read-write cycles of IC card | >100000 cycles | ||
| Card slot durability | > 10000 cycles | ||
| Valve durability | >10000 cycles | ||
| Communication mode | Contactless IC card | ||
Dimensions
