Ultrasonic Domestic Gas Meter

For more information, please contact us directly by telephone or email
Product description

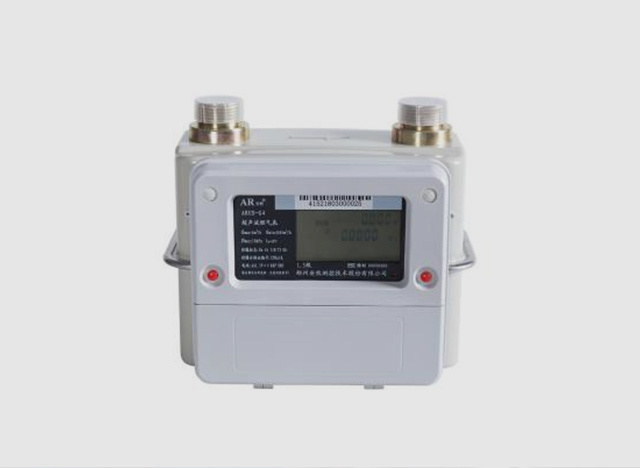

Ultrasonic Domestic Gas Meter

Description

Ultrasonic gas meter is a fully electronic speed metering device developed and produced by our company that uses ultrasonic measurement. It is characterized by non-contact, no moving parts, large range ratio, good linearity, high reliability and high measurement accuracy.



Key Strengths

  • Low pressure absorption
  • No mechanical wear
  • Good repeatability
  • Ultra compact
  • No moving parts
  • High measuring precision with more stationary error curve
  • Temperature and pressure compensation
  • Stable operation and long service life without noise
  • Non-magnetic element and measurement not easily affected by magnetic field



Key Technologies

  • Large range ratio
  • Small starting flowrate
  • Two-way measurement
  • Fault self-detection
  • Valve shut-off due to overflow



Specifications

Type G1.6 G2.5 G4
Qmax (m3/h) 2.5 4 6
Qmin (m3/h) 0.016 0.025 0.04
Qstart (dm3/h) 3 5 5
Range ratio 200:1
Accuracy class 1.5
Working voltage 6V
Battery AA alkaline battery (NO. 5)/ lithium battery 3.5V
Working temperature ﹣15℃~50℃
Maximum working pressure 30kPa
Average working current ≤1mA
Quiescent current ≤20μA
Pressure absorption ≤140Pa
Meter fittings central distance (mm) 130
Degree of protection IP65
ATEX ExibII BT3 Gb
Measuring resolution 0.001m³
Valve durability >10000 cycles
Temperature and pressure compensation Optional



Dimensions

Ultrasonic Domestic Gas MeterUltrasonic Domestic Gas Meter
